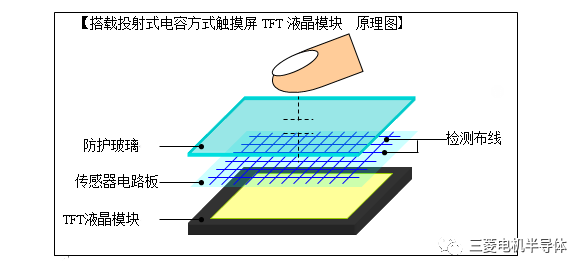

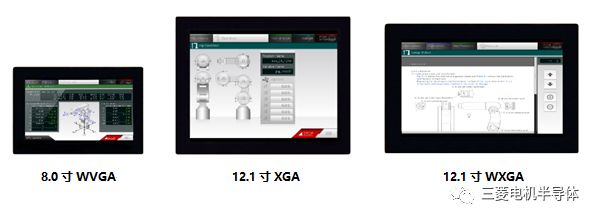

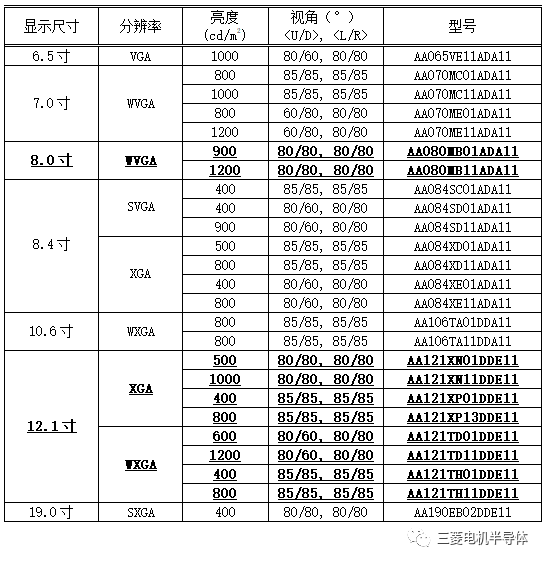

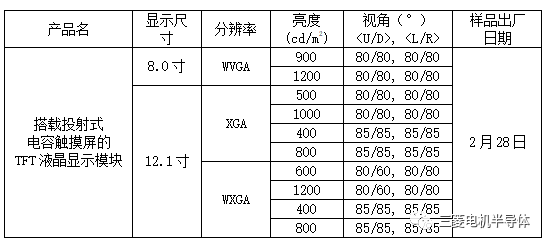

As we all know, in terms of color TFT LCD module products, Mitsubishi Electric has always insisted on continuous innovation, and strive to provide the industry with more features, higher performance touch screen products. At present, it has been implemented on a protective glass with a thickness of 5 mm, and supports a multi-touch operation of up to 10 points. It can also be operated while wearing a heat-resistant glove with a certain thickness or in the state where water droplets are attached. So far, 6.5-inch, 7.0-inch, 8.4-inch, 10.6-inch, and 19.0-inch have been put on the market. On February 28, Mitsubishi Electric Corporation began offering 8.0-inch WVGA and 12.1-inch XGA/WXGA wide-screen samples with a projected capacitive touch screen. The product can be operated from a thickness of 5mm protective glass and is suitable for gloved operation. Various applications such as control and resistance to water drop. By expanding the product lineup this time, it can be applied to various types of industrial machinery equipment such as measuring instruments, construction and agricultural machine tools, and gas station POS machines. Equipped with touch screen industrial color TFT LCD module new product features: 1, equipped with a touch screen that can operate from a thickness of 5mm protective glass, It is equipped with a control circuit that combines high sensitivity, water resistance, and multi-point detection to create a high-performance, high-performance touch screen. In addition to the ability to operate on 5mm thick protective glass, there are up to 10 multi-touch operations. It can be operated under the condition of wearing gloves and water droplets, and can be used under a variety of environments while touching 2 or more points. 2. Provide support for a full set of touch screen solutions , complete solutions and full support for LCD modules, touch screens, and control circuit boards. Provides high-visibility glass bonding technology*2 in bright environments such as outdoor areas, and processing of various options such as reinforced glass, low-reflection treatment, and anti-fouling treatment. Through the production of liquid crystal display module, touch screen sensor, protective glass, and control circuit board assembly, high quality and high reliability are achieved. Bonding TFT liquid crystal module, touch screen sensor and protective glass with synthetic resin: New product summary Projected capacitive type The capacitive type is a touch screen method that determines the contact position by measuring the electrostatic capacitance between the sensor and the fingertip; the capacitive type is further divided into a four-corner detection surface type and a full block screen detection projection type. Projection-type multi-touch operation has been applied to terminal devices such as smart phones. The company uses a low-resistance material instead of a transparent electrode film similar to ITO*3 in the sensor wiring of the touch screen, thereby achieving color shift and high visibility. 3 Indium-tin-oxide: Indium Tin Oxide Equipped with a high-performance, high-performance touchscreen product lineup New product specifications 4 According to the thickness specifications of the cover glass, the values ​​are also different. (where the protective glass thickness is 1.1mm) Elcb Breaker,Elcb Circuit Breaker,Earth Leakage Breaker,Earth Leakage Protection ZHEJIANG QIANNA ELECTRIC CO.,LTD , https://www.traner-elec.com
