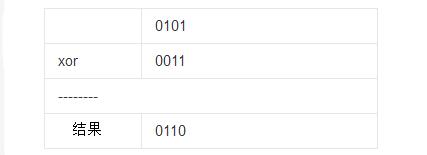

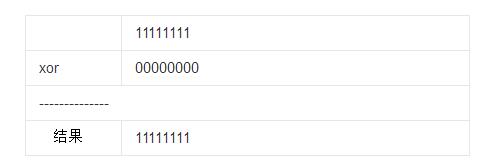

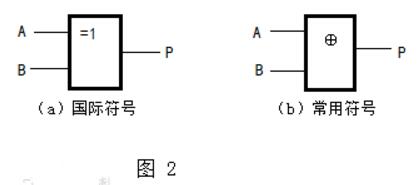

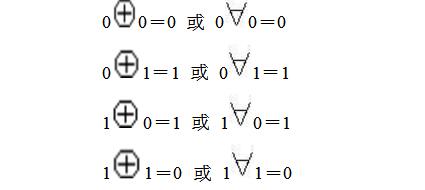

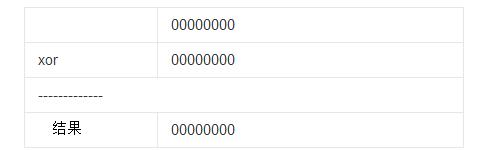

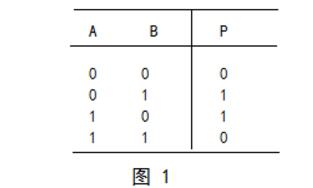

Logical expression: F=AB'⊕A'B((AB'⊕A'B)'=AB⊙A'B', ⊙ is "same or" operation) The truth table of the XOR logic is shown in Figure 1. Show, its logical symbol is shown in Figure 2. The relationship of XOR logic is: when AB is different, the output P=1; when AB is the same, the output P=0. “⊕†is an XOR operator, and XOR logic is also a combination of OR and Logic. The logical expression is: P=A⊕B As can be seen from Figure 1, the rule of the XOR operation is 0⊕0=0,0⊕1=1 1⊕0=1,1⊕1=0 Mouth: Same as 0, different from 1 In fact, XOR is defined in English as either one (isone), butnotboth, that is, when only one is true (1), it is true (1). XOR operations are commonly used in computers. XOR logic symbols are generally used in xor, and are also useful: True false = true False ⊕ true = true False fake = false Really true = false Or for: True⊕False=True False⊕True=True False⊕False=False True⊕True=False Some computer languages ​​use 1 for true, 0 for false, so two bytes are XORed as follows Here are two binary values ​​for XOR calculation: In reality, all decimal values ​​are used, so let's take a look at how two decimal values ​​are XORed: 5⊕3=? 1. Convert the values ​​to binary before performing the XOR calculation: 5 and 3 are converted to binary respectively: 0101, 0011 2. Convert the result 0110 to decimal: 6 3. So 5⊕3=6 Two numbers exchange: A simple way to exchange without using the third number: An exclusive OR operation is its own inverse operation, that is, for any two Boolean variables or numbers (axorb) xorb=a. Therefore, there are the following exchange methods: supplement, the simple nature of the XOR operation: 1.a⊕a=0 2.a⊕b=b⊕a 3.a⊕b⊕c=a⊕(b⊕c)=(a⊕b)⊕c; 4.d=a⊕b⊕c can be launched a=d⊕b⊕c. 5.a⊕b⊕a=b. 6. If x is a binary number 0101, y is a binary number 1011 Then x⊕y=1110 The result is 1 only if the two compared bits are different, otherwise the result is 0. That is, "the same is 0, the difference is 1"! Except for the above properties, XOR has a elimination law: a^b=b^c=â€a=b, and the AND, OR operation does not satisfy this property. XOR operation, common symbol It can be seen that when the logical operation variables of the two phases are the same, the result of XOR is 0. When the values ​​are different, the result of XOR is 1.
