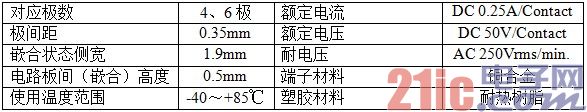

21ic News Kyocera connector products Co., Ltd. (hereinafter referred to as "KCP") has developed a smart phone, between 0.35mm pitch board to board connectors "5849 Series", on May 30 officially on sale. This article refers to the address: http:// 0.35mm narrow pitch between circuit board to circuit board connector "5849 Series" With the versatility of products such as smartphones, tablets, digital still cameras (DSCs), digital audio players, etc., more and more components need to be installed, in order to make more limited use of the substrate space, to achieve product Miniaturization and thinning require high-density mounting of the components to be mounted. The 5849 series developed this time is a 0.35mm pitch, a mating height of 0.5mm, and a low-number of circuit board-to-board connectors that meet the high-density mounting requirements of electronic equipment. Moreover, the lock structure even when the machine is fitted is unique to the company, has a low back and has a good hand feeling, and enhances the holding force at the time of unplugging. In addition, the product contact part adopts "clamp contact shape" (2-point contact), which is a structure with strong anti-vibration and anti-impact ability. The terminal shape of the plug portion adopts a structure that improves the concentrated load and can remove foreign matter, and achieves high contact reliability. Moreover, a bottom wall is provided on the back of the connector to prevent metal from being exposed, and the terminal pads of the product can be freely arranged in the opposite direction, which is suitable for high-density mounting. KCP will contribute to the continuous miniaturization, thinning and high-density installation of electronic devices by introducing this product. ≪Product Profile≫ 1. 0.35mm pitch, side width dimension 1.9mm, mating height 0.5mm area, less poles of circuit board to board connector 2. Has good operability The locking structure at the time of fitting is unique to the company, has a low back and has a good hand feeling, and enhances the holding force at the time of pulling out. 3. Structure suitable for high density installation At the same time of thin and low back, the bottom wall of the connector is provided to prevent metal from being exposed, and the terminal pads of the product can be freely arranged in the opposite direction, which is suitable for high-density mounting. 4. Strengthen the peel strength of the board by keeping the fittings 5. Strong resistance to vibration, shock and foreign matter, achieving high contact reliability The contact part adopts the "clamp contact shape" (2-point contact), which is a structure that is resistant to vibration and impact. In addition, the terminal shape of the plug portion adopts a structure for improving concentrated load and eliminating foreign matter, and achieving high contact reliability. 6. With detection connector At the same time, a connector for detecting the conduction and short circuit is provided for the fitting connector. 7. Corrugated tape packaging for 15,000pcs of 1 tray that is automatically installed 8. Support environmental protection and corresponding RoHS directive, halogen-free directive 9. Product specifications Usb Common Mode Choke,Magnetic Ring Inductor,Wurth Inductor,Coilcraft Inductor IHUA INDUSTRIES CO.,LTD. , https://www.ihua-magnetics.com
